TileMapLayer collisions

[shouldz]

Godot Version

Godot 4.3

Question

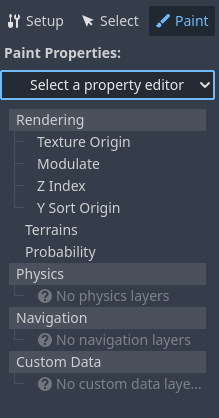

Hello, i wanted to use the new TileMapLayers of Godot 4.3, but i cant figure out how to add Collision and Y-Sorting. It seems to work completely different to before where the TileMap where just used. I can only find tutorials about the old TileMap or Videos about what changd in TileMapLayer but never explained how collision and y-sorting works… Even ChatGPT cant help me, because he only knows the old TileMap… I found some options in the TileMapLayer like “Enable Collision” but it does nothing, as i cant paint any collision shapes. In my TileSet Editor the “Physics Layer” is gray and i cant do anything… (see Image below)

TLDR: How do i add collision and Y-Sorting to TileMapLayers?

Thank you for your help!

[Johnny_Li]

Hello! TileMapLayer and TileMap work basically the same way, you can’t add collisions because you didn’t add a physical layer (this is the same as the old Tilemap, maybe you didn’t learn it well )You should add a new physical layer to the inspector…Click ‘Add element’…

Then go to ‘Paint’ and paint it (click on Physical Layer 0,it’s not greyed out at this point)
As for Y-Sorting, like Tilemap, enable Y-Sorting in the Inspector ：
THIS IS MY FIRST ANSWER，AND I just became a junior high school student.
I’ m a newbie on godot,too!

[shouldz]

Hey Johnny!
Thanks alot for your answer! I found the Physics Layer and can now draw my collision shapes. This is my first time using godot, thats why i dont know much about the old TileMap but its hard to find good information about the new stuff…

Thanks for your Screenshot and help!

[Johnny_Li]

thanks ,i have lerned godot for 1 month.
My english is not good
