Trying to improve performance of 2D game on Android

[Wilko]

Godot Version

v4.4.1.stable.mono.official [49a5bc7b6]

Question

I am working on an android game and I want to see if I can make it run better. The game is a puzzle game where the board is made up of controls.

I currently have the project set to “compatibility” renderer based on this document.

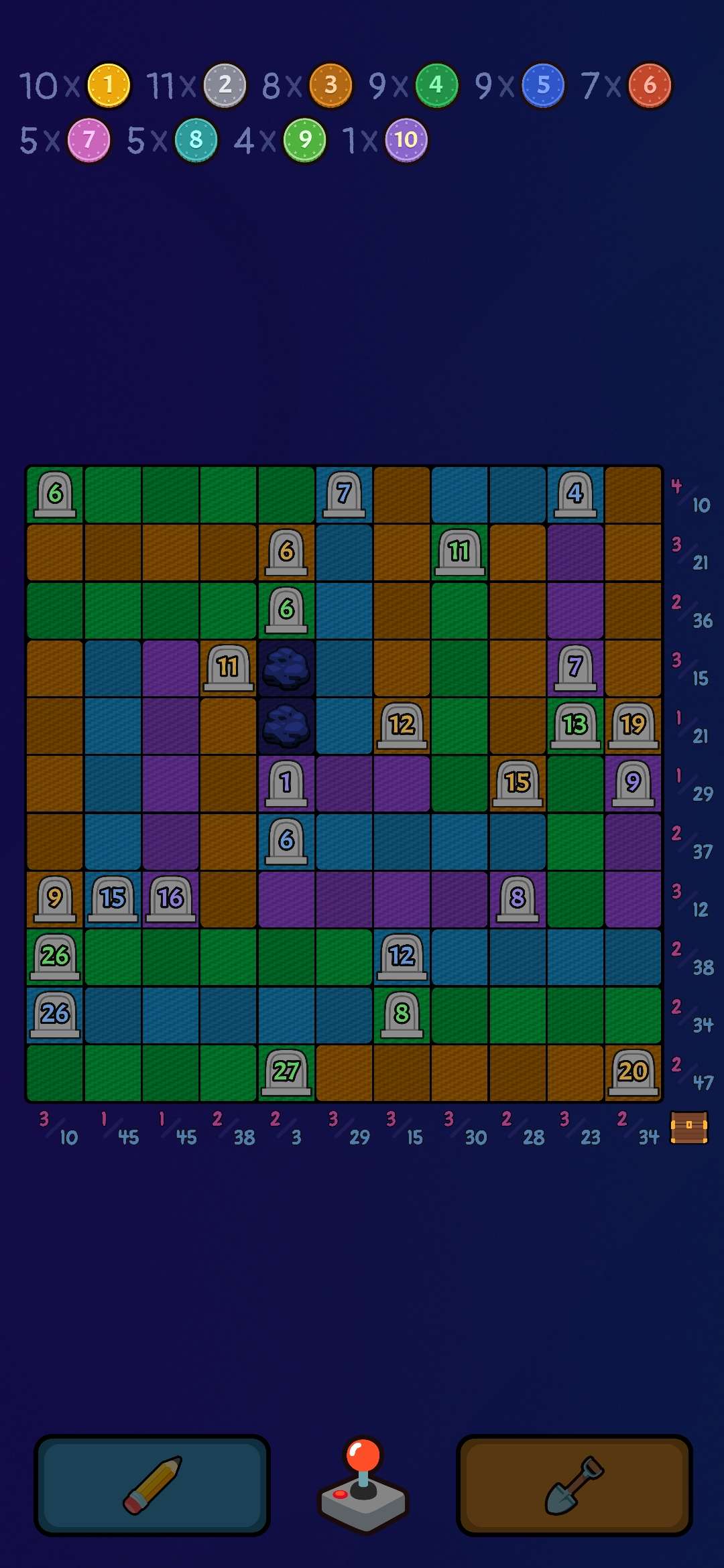

Here is what the largest (11x11) board looks like:

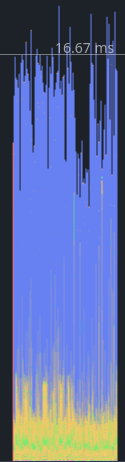

This scene takes about 12ms to render on my phone:

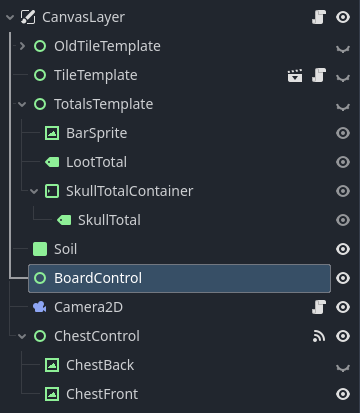

The game board canvas layer has a control node that houses all the tile controls, and a camera2d for zoom/pan movement

If I set visible = false on the root control of the board, the Render Canvas step goes from 12ms to 2ms. So I think this is where a majority of the render time is coming from.

Each tile on the board is a control with several children, but most of them are not visible.

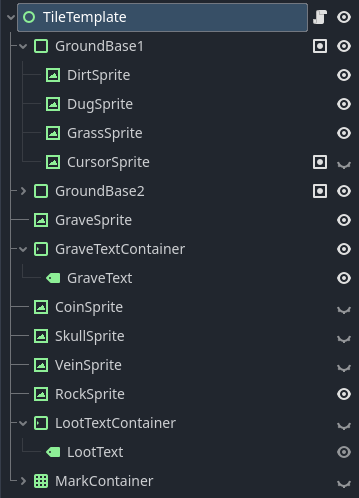

This is what the base tile template looks like:

However when I setup the board, I try to free/remove everything possible.

else if (tile.Type == YardSweeperTileType.Loot)
{
	MyGrass.GuiInput += (inputEvent) => ClickTile(inputEvent, tile);

	var CoinSprite = TileButton.GetNode<TextureRect>("CoinSprite");
	CoinSprite.Visible = false;
	CoinSprite.Texture = GD.Load<Texture2D>("res://art/coin" + tile.Value + ".png");
	Label LootText = TileButton.GetNode<MarginContainer>("LootTextContainer").GetNode<Label>("LootText");
	LootText.Text = tile.Value + "";
	var SkullSprite = TileButton.GetNode<CanvasItem>("SkullSprite");
	SkullSprite.Visible = false;

	var GraveTextContainer = TileButton.GetNode("GraveTextContainer");
	TileButton.RemoveChild(GraveTextContainer);
	GraveTextContainer.Free();
	var GraveSprite = TileButton.GetNode("GraveSprite");
	TileButton.RemoveChild(GraveSprite);
	GraveSprite.Free();
	var VeinSprite = TileButton.GetNode("VeinSprite");
	TileButton.RemoveChild(VeinSprite);
	VeinSprite.Free();
	var RockSprite = TileButton.GetNode("RockSprite");
	TileButton.RemoveChild(RockSprite);
	RockSprite.Free();
}

Because of this, all the tiles should only have visible what is necessary to draw. While there are layers (coins below grass and above dirt), those are all visible = false, and removed and freed when possible.

So far I have tried changing out the TextureRects for Sprite2Ds, but I did not measure a performance change.

Is this normal performance for rendering ~200 textures on android? Are there any rendering improvements that I can make to this setup? thanks.

[OleNic]

You don’t have a performance problem, but you shouldn’t ever tackle optimization by guessing.
You need to measure performance with the tools at hand : Godot internal profiler and then a third party profiler, usually made by the CPU(family) maker to get more precise timings.
You need to instrument your code, do statistical relevant profiling runs, and then talk about performance
Keep up the hard work, have fun,
And while premature optimization is the root of all (most?) evil, measuring early and often is a good approach.
Cheers!

[Wilko]

I’m not running any code while this scene is running, its entirely Godot trying to render it every frame.

While I do fine with ~12ms frames, I have friends who’s device run much slower. On this board he gets ~3 fps while the game is idle.

Since the textures were large (each tile about 312x312 pixels), I attempted to resize them down to see if that would help performance.

While running the profiler, I noticed some intermittent improvements with this approach. ~5-12ms frames instead of ~8-13ms frames. But the averages were very similar. Testing on the lower end device still resulted in the same poor performance.

I could in theory render everything out to a render target, and re-render sections when a tile is dug. That seems like a lot of work and doesn’t help when I want to animate the whole board moving.

I will also try out MultiMesh2D and TileMap to see if I get any results. The tiles have border radius and a shader to color them. I will see if prebaking all the tiles to a tileset will help.

[tassup]

@Wilko

I could in theory render everything out to a render target, and re-render sections when a tile is dug. That seems like a lot of work and doesn’t help when I want to animate the whole board moving.

This sounds almost like Low Processor Mode in project settings.

@Wilko

I have friends who’s device run much slower

What renderer are you using? Screenshot looks like Compatibility renderer would be enough. You can also make a low resolution mode using Window → stretch mode = Viewport and having a viewport resolution lower than the device screens resolution.

[Wilko]

I am using the compatibility mode renderer.

I think my performance is due to using shaders to color the tiles and corner radius set on panel containers.

I am going to prebake all the tiles and use a spritesheet instead. I believe this will help.

[tassup]

Shader can be very heavy sometimes. Especially if there are if-statements there. For simple coloring you can use the modulate property instead of a shader. That’s not at all heavy. Spritesheet might be even faster

[Wilko]

On average the frame times have gone to ~3ms from ~12ms. So getting rid of the shaders and corner radius on tiles made it run about 75% faster
