UI that should be independant of the camera

Help UI
1

Godot Version

4.2.2 stable

Question

I created a platform game by following Brackeys’ complete tutorial. It is exceptionally well done, and my son and I managed to follow it all the way through. Now I just want to add the capability for the game to run properly on mobile phones.

To do this, I want to add a scene where I drew a joystick following this video.

The only problem is that I want the joystick to stay at the bottom left and not move at all. In all forums and questions, the answer is always “add a CanvasLayer” and then add the joystick scene inside it.

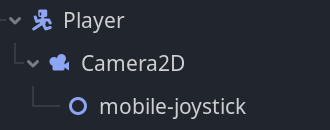

When I do this, nothing happens and the joystick is not visible at all. On the other hand, if I put the joystick inside the player, it works:

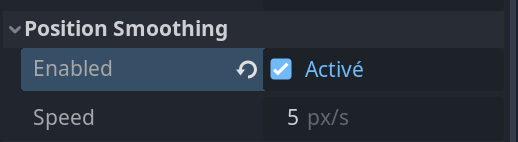

… Well, it works perfectly under one condition: I do not activate “Position smoothing”. If I activate it, you can immediately see the result here.

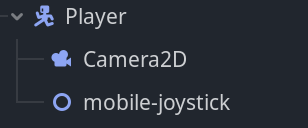

I tried this too:


If I un-check it, it works flawlessly. So there might be a bug where the “Position smoothing” is calculated after everything else including children positionning (or something like that).

You can get all my source code here.

2

Add your user controls as children of your main scene, not as children of your player.

3

I’ve done that and it cant work because it wont follow the player.

4

You need to learn about UI and HUDs.

Here is a great resource that gives a beginner’s level deep dive into it.
