Understanding tilemap positions and sprite rendering

Help
,
1

Godot Version 4.6.2

How do tilemaplayer positions, local and global positions, and sprite rendering work together?

I’m currently trying to build an isometric tactical rpg like final fantasy tactics. Currently my scene structure is:

Tilemaplayer

  • Cursor
  • PlayerCharacter

In my tilemap script I use this code to set the initial placements of the children onto the grid

func _ready() → void:
var grid_objects := get_children()
for grid_object in grid_objects:
if grid_object is GridObject:
print(grid_object.grid_coordinates)
grid_object.position = map_to_local(grid_object.grid_coordinates)

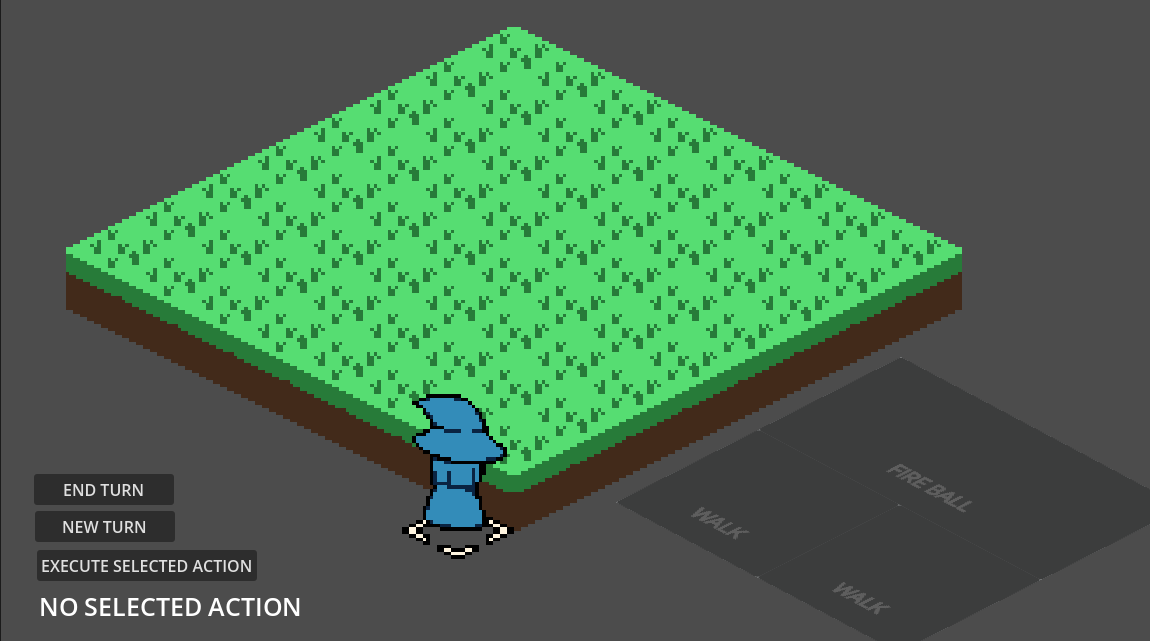

however, despite setting my grid_objects (Cursor and PlayerCharacter) to have grid_coordinates of 0,0, the sprite of the cursor and the playercharacter are being rendered to the tile at (3,5)

image1150×641 23 KB

On top of that, the placeholder character sprite is not completely centered with the cursor, or any grass tile, since I’m not sure where I’d need to place the character sprite within it’s own scene to make sure it’s always centered on a tile. For context the isometric grid uses tiles of size 32*16. I’m not sure if there’s a way to programmatically center the player sprite onto a tile or if I just need to adjust it in the player scene’s sprite2d child.

Is there something that I’m just missing when it comes to local position, global position, map positions, and tilemaplayers?

2

Where’s your sprite’s origin?

3

The character should always be at (0, 0) in its own scene. Otherwise weird stuff happens.

Local position is the position of a Node2D/3D in direct relation to its parent. So do this:

  1. Add your Vivi scene to the level that contains the map.
  2. Make Vivi’s position.x 16 and position.y 8.
  3. Vivi will now be centered when placed on a tile.

Realistically, you’ll probably have to figure out how to move the characters in tile space. So you’ll have a tile size, and an offset.

const TILE_SZE = Vector2(32, 16)
const OFFSET = TILE_SZE / 2

var vivi = Vivi.new()
vivi.position = OFFSET

func move_vivi_right() -> void:
	vivi.position += TILE_SIZE.x
4

Changing the origin point of the vivi character fixed the positioning issue!

5

Congratulations!

You are my 300 person served! (There is no reward for this.)
