Why does sampled occluder depth differ greatly from computed depth for the same projected point?

[Oliort]

Godot Version

4.6.1

Why does sampled occluder depth differ greatly from computed depth for the same projected point?

I tried to make a 3d point lighting for 2d top view game this way:

• I have heightmap polygons and textures I render to different render layer and capture via heightmap canvas.
• Next I render 3d scene from light perspective using the heightmap viewport texture as terrain heightmap, writing depth as pixel color value.
• Next I render full-screen postprocessing overlay, where I calculate 3d position of 2d input vertex, project it to 3d point light camera clip space and calculate depth using the same formula as used for rendering 3d camera viewport.
• I sample the depth texture I got from 3d viewport and compare it against calculated depth to do shadow and light mapping. The idea was if I get some difference > eps then the point was occluded. Non occluded positions should have point light texture overlay drawn.

The problem is I get this difference everywhere, even where I have height = 0 on my heightmap and no occluders are in the way. What could be the reason I get this depth value divergence?

Point light depth shader:

shader_type spatial;
render_mode unshaded;

uniform sampler2D heightmap : source_color, filter_linear, repeat_disable;
uniform float height_scale : hint_range(0.0, 2000.0) = 120.0;
uniform mat4 flashlight_projection;

varying vec3 v_world_position;

void vertex() {
	VERTEX.y = height_scale * texture(heightmap, UV).r;
	v_world_position = VERTEX;
}

void fragment() {
	vec4 clip_space = flashlight_projection * vec4(v_world_position, 1.0);
	float depth_01 = -(clip_space.z / clip_space.w) * 0.5 + 0.5;
	ALBEDO = vec3(depth_01);
}

Postprocess overlay shader:

shader_type canvas_item;
render_mode unshaded;

uniform sampler2D flashlight_depth : filter_nearest;
uniform mat4 flashlight_projection;

uniform vec2 camera_position;
uniform vec2 zoom;
uniform vec2 viewport_size;

vec2 get_global_from_UV(vec2 uv) {
	return camera_position + (uv - 0.5) * viewport_size / zoom;
}

void fragment() {
	vec2 position = get_global_from_UV(SCREEN_UV);
	vec2 vector_from_camera = position - camera_position;
	vec4 clip_space = flashlight_projection * vec4(vector_from_camera.x, 0.0, vector_from_camera.y, 1.0);

	if (clip_space.w <= 1e-5) COLOR.a = 0.0;

	vec2 depth_map_norm_uv = clip_space.xy / clip_space.w;
	vec2 flashlight_depth_texture_uv = depth_map_norm_uv * 0.5 + 0.5;
	flashlight_depth_texture_uv.y = 1.0 - flashlight_depth_texture_uv.y;

	if (any(lessThan(flashlight_depth_texture_uv, vec2(0.0))) ||
		any(greaterThan(flashlight_depth_texture_uv, vec2(1.0))))
		COLOR.a = 0.0;

	float occluder_distance = texture(flashlight_depth, flashlight_depth_texture_uv).r;
	float ground_point_distance_from_flashlight = -(clip_space.z / clip_space.w) * 0.5 + 0.5;
	float distance_error = clamp(abs(occluder_distance - ground_point_distance_from_flashlight), 0.0, 1.0);
	COLOR.rgb = vec3(distance_error);
}

Godot 4.6 MRE project sources here. The example works directly in editor without starting the scene.

[normalized]

Can you show the depthmap?

[Oliort]

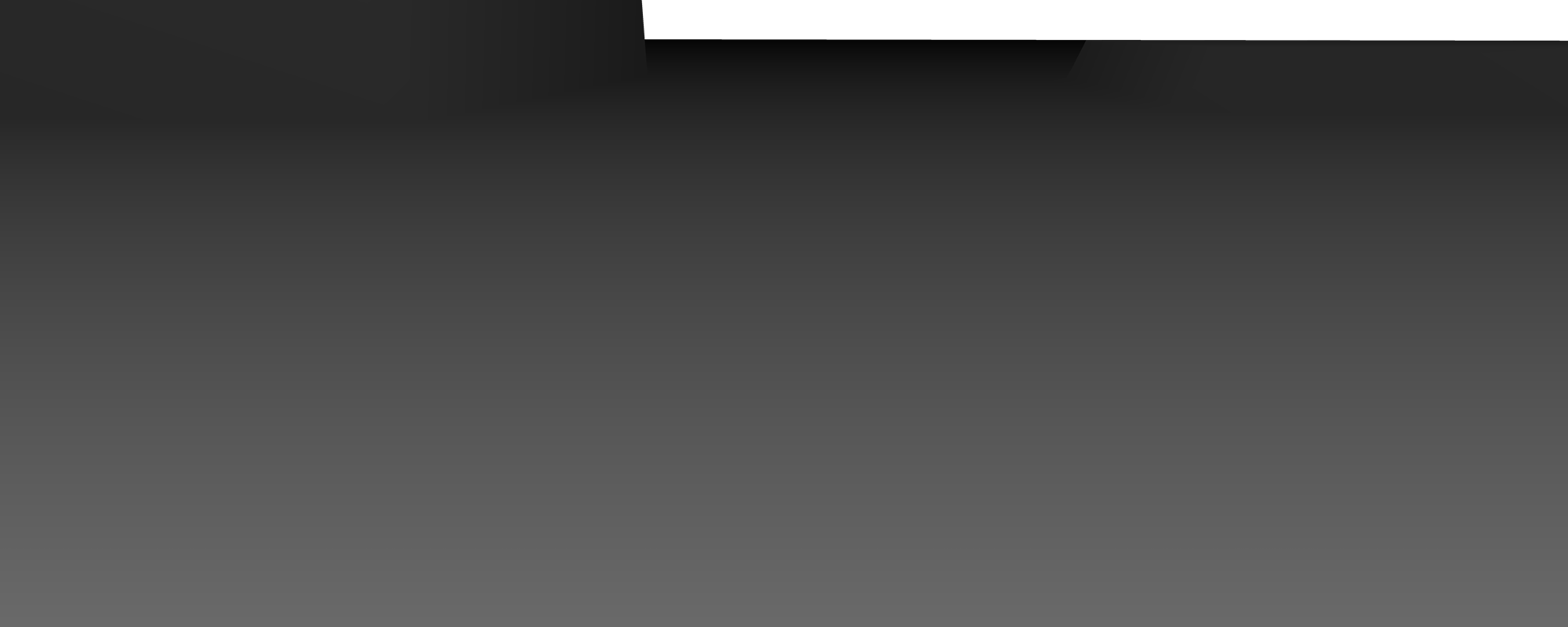

Sure, here it is saved as png.

You can test it yourself with a minimal project I uploaded to Github. This is texture of FlashlightViewport.

[normalized]

That doesn’t look entirely like what the light would see if it was aimed horizontally.

I don’t think you can render this depthmap properly just from the heightmap without marching the viewing rays across it.

[Oliort]

Light is not aimed horizontaly, its pitch is 20 degrees below horizon. That’s because I want to simulate the light source is at some height (flahlight in player hands) and the shadows to be limited in length.
The transparent region on the depth image is transparent background in 3d world (sky).

@normalized how could marching help here? I just do regular shadow mapping, like in this tutorial LearnOpenGL - Shadow Mapping, but for flashlight-style point light (this is why I use perspective projection), and the viewer camera is opposite - orthogonal top-view projection instead of first person perspective.

[normalized]

Where is UV and VERTEX in that first shader coming from? What geometry are you rendering there?

[Oliort]

VERTEX is from plane mesh, its built-in Godot model-space 3D position. UV is the plane mesh UV.
GitHub - oliort/3d_shadows_in_2d: mre for so · GitHub you can check the scene setup and scripts here.

[normalized]

@Oliort

@normalized how could marching help here? I just do regular shadow mapping, like in this tutorial LearnOpenGL - Shadow Mapping, but for flashlight-style point light (this is why I use perspective projection

You can’t do shadow mapping without the depth buffer, or in this case, since you don’t render geometry, without marching. How would you know what the particular light ray sees if multiple heights can be hit by the same ray. You need to determine the closest hit. When you render geometry this is taken care of by the depth buffer. Without the geometry you can’t utilize the depth buffer and you need to sample the heightmap going step by step from the camera until the sample height is higher than the ray height. Then write the depth the ray reached into the depthmap.

[Oliort]

But I do render 3D geometry. Look at the depth map, both height polygons are present there (as hills on the plain mesh heightmap terrain)

[normalized]

Test with some overlaps.

@Oliort

VERTEX is from plane mesh, its built-in Godot model-space 3D position. UV is the plane mesh UV

So it’s a ground plane, not a camera facing plane?

[Oliort]

Yes, VERTEX in flashlight perspective shader is in plane mesh model space. After I do manual modelview transform its now in camera space. In fragment shader its in clip space as FRAGCOORD, and I tested my formula with projection matrix and FRAGCOORD.z - they are equal. I kept my formula instead of FRAGCOORD.z to show I do same projection in both shaders.

[normalized]

Well you can’t get the proper world coordinate to read the height from like this. You’re taking the vertex xz where the ray hits the ground plane. If it hits something that sticks out that’s closer than that it will miss it and take the ground xy that’s “behind” it along the same ray. Your sample point will be incorrect. Hence - you need to march the ray.

[Oliort]

I agree, the height is missing from that point being projected, but it differs not only in occluded regions, but everywhere else where height is equal to zero, and that projected point does match with terrain surface, as there is no elevation neither there not in the path from the camera (there is nothing “behind”, i project right onto the ground plane in these regions).

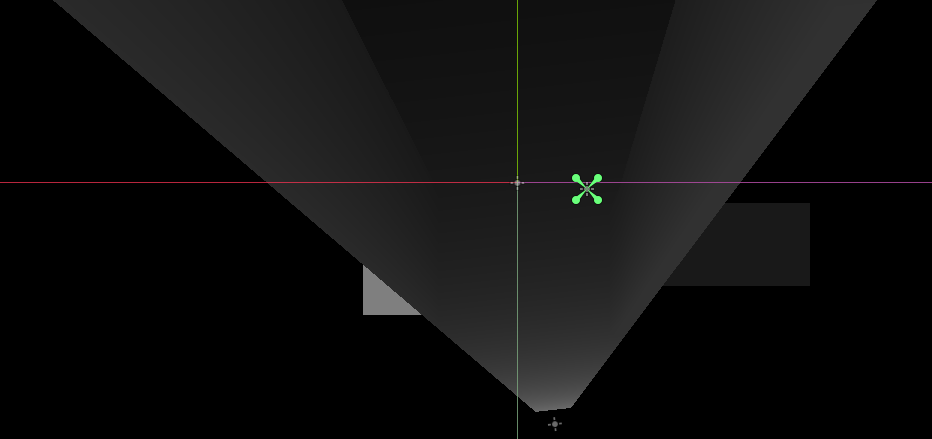

Like if that only would be the problem I would have black all those regions on the first image in my question, I marked should be black.

[normalized]

You’re also reading the heightmap at UV, which may or may not correspond to world XZ, depending on the setup. So you should at least transform world XZ to heightmap UV.

[Oliort]

Check the scene please. I took care there so they should match, but I agree I have an error somewhere. Because of how UV correspond to world XZ, looking at the scene setup would be very usefull. I set plane size to heightmap size there:
var camera_view_size := camera.get_viewport_rect().size / camera.zoom
var world_size := camera_view_size * shadow_map_coverage
var plane_mesh := mesh_instance.mesh as PlaneMesh
plane_mesh.size = world_size

[normalized]

In the second shader, try to debug-render only what you read from the depthmap.

[Oliort]

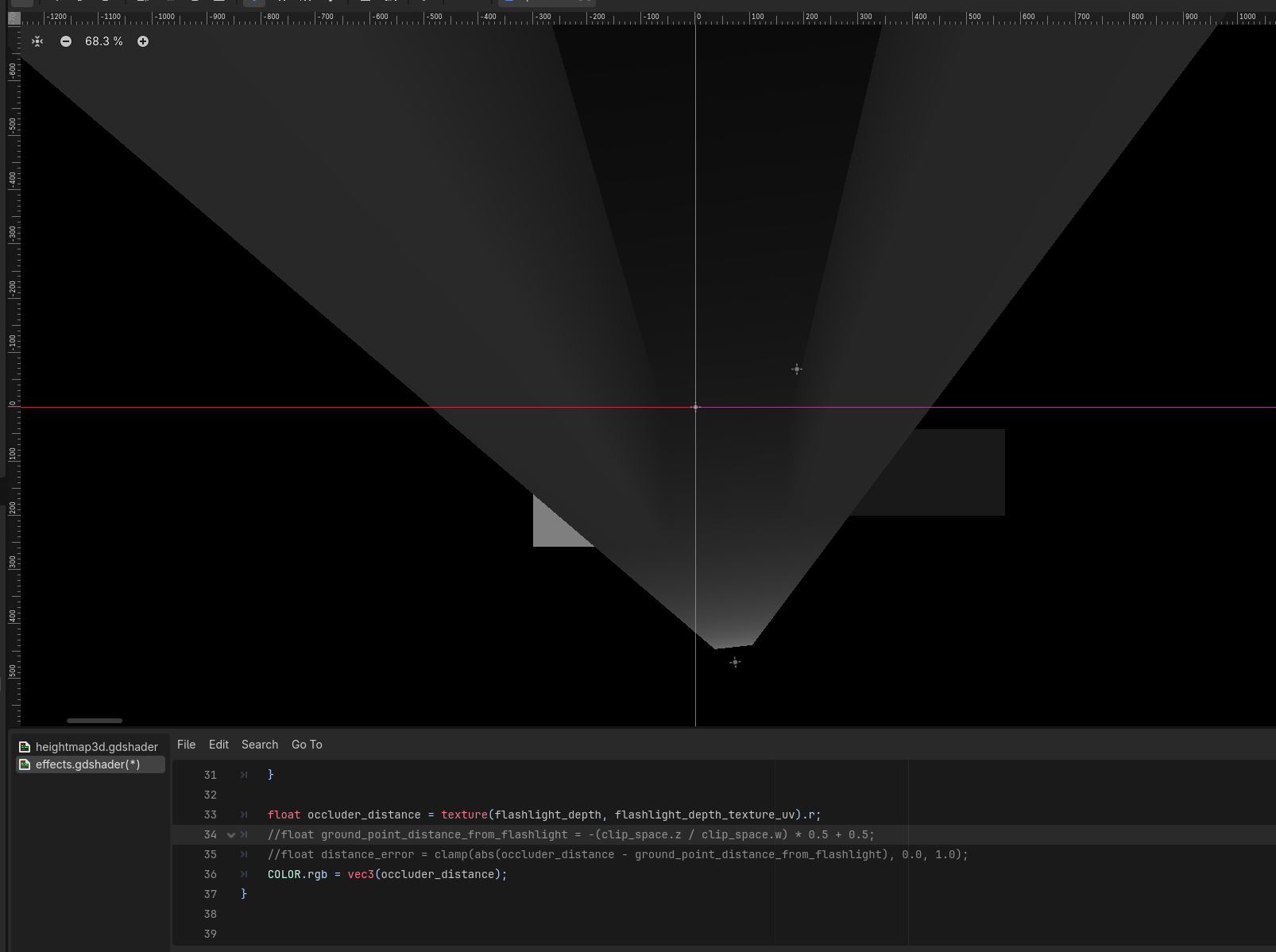

It’s almost the same if I render just depth sampled from texture, because ground_point_distance_from_flashlight is almost everywhere one order of magnitude (5-10 times) smaller, and the difference between them looks almost like just sampled distance ((a - b) almost equal to a alone, because b is always relatively much smaller than a

[Oliort]

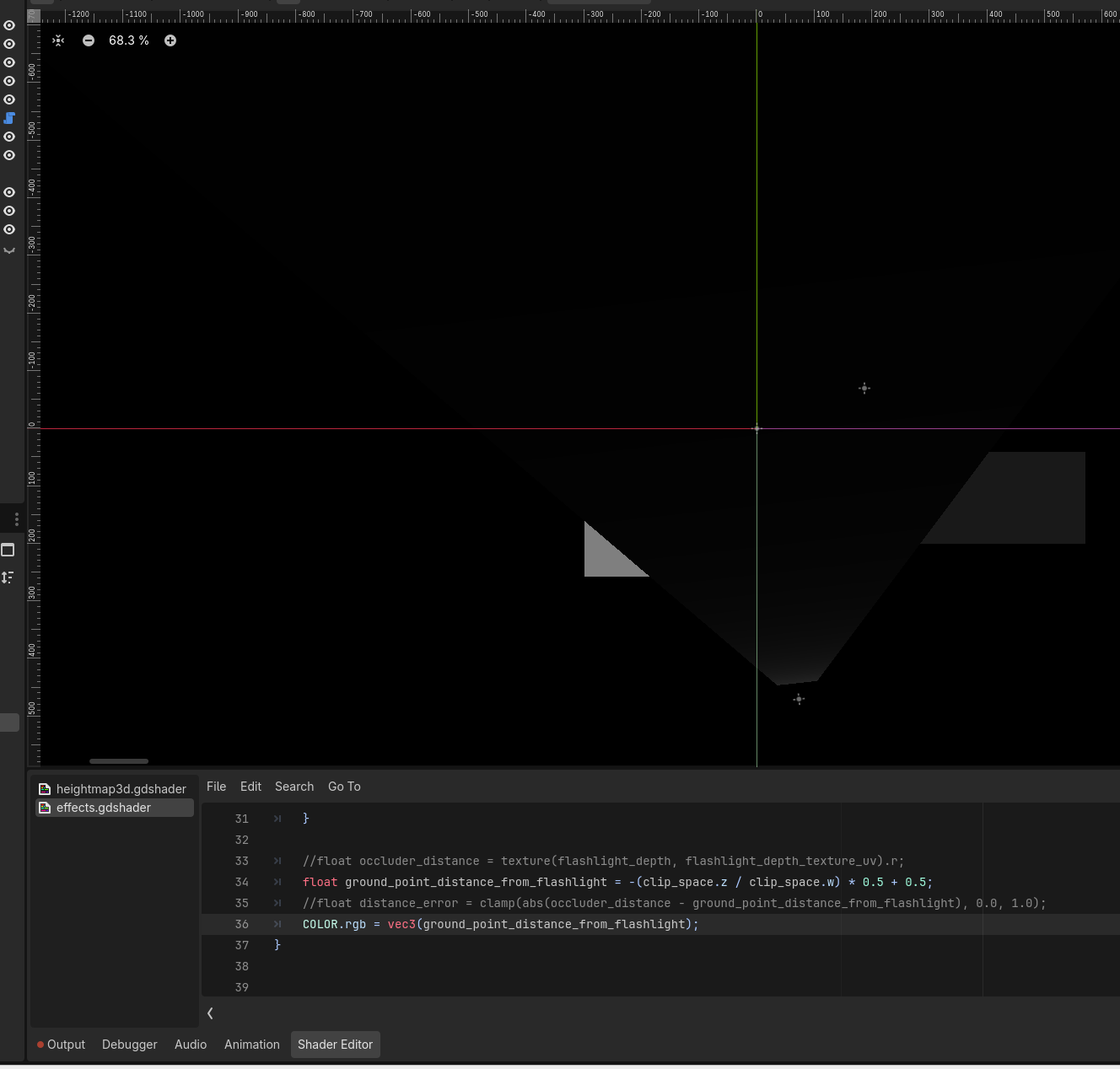

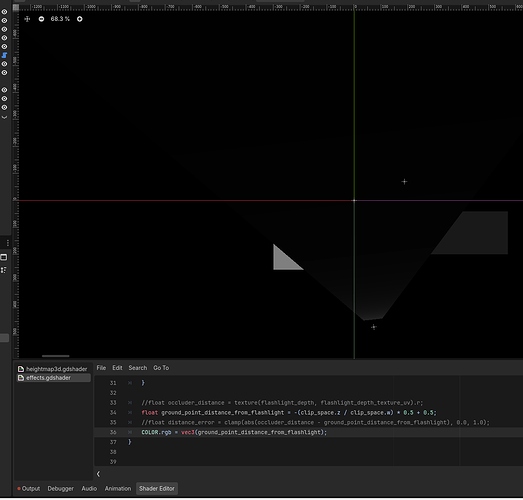

Here the opposite - ground_point_distance_from_flashlightm instead of sampled occluder distance is rendered. As you can see - in all regions it is much darker.

[normalized]

Well is your 3D ground quad matching in size with your 2D world? What happens if you enlarge the ground plane? (Note: not scale, because you’re working in object space)

[Oliort]

if I enlarge plane mesh 1.5 times, and draw sampled occluder distance I get this. The positions of height polygons now do not match in the rendered overlay (they are bigger in both dimensions).
var world_size := camera_view_size * shadow_map_coverage * 1.5
