Draw_line doesn't draw line

Help Programming
, , ,
1

Godot Version

4.2.2 stable official

Question

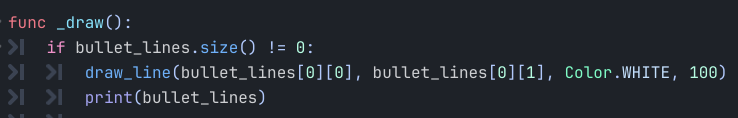

I want to draw line from bullet_lines[0][0] to bullet_lines[0][1]

a
a738×118 13.8 KB

but there is no line on screen
This is bullet_lines
b

2
  • Did you call it’s queue_redraw method?
  • Is your node out of viewport bounds?
  • Is the line is so far from drawer node?

Position arguments in draw methods is relative position about the node.

1 Like
3

1.yes
2.it is root node at 0, 0
3.screen size is 1920 x 1080

4

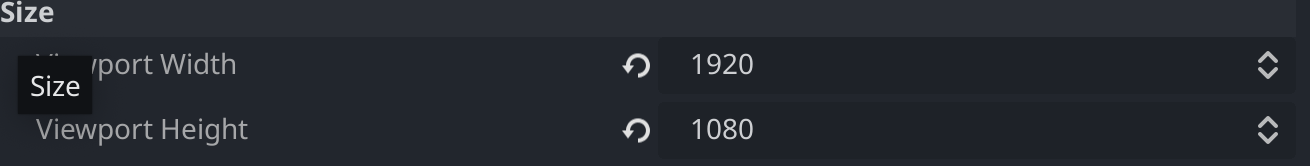

  • What is display/window/size/viewport_width and display/window/size/viewport_height?
  • What output is print(get_viewport_rect())?

I guess it’s out of viewport so it can’t be seen.

5

c
c1310×166 18.4 KB

6
  • Which type is the root node?
  • Is there any print statement that printed that you seen in other lines?
  • Is that node visible?
  • Did other node cover it with same color? Like SubViewportContainer.

Also i can’t reproduce it by following code:

extends Node2D

func _draw() -> void:
    draw_line(Vector2(954.0582, 346.0456), Vector2(832, 64), Color.WHITE, 100)
