RayCast2D detecting collision layers / masks help

Help Programming
,
1

Godot Version

v4.4.1

Question

Hi all,

I’m having a problem with raycast collisions I’m hoping someone can help explain to me.

I have some Area2Ds (with CollisionShapes of course) in my world, setting the collision layers and masks, layer 2 for my Apples and layer 3 for my Water sources (right side of screenshot).

I’m generating a bunch of RayCast2D nodes via code (GDScript) and setting the collision masks on the rays with the set_collision_mask() function (top left of screenshot).

Then I’m checking if the rays have a collision and if the collider has the collision layer, I tried collision masks here to, but that didn’t work at all, maybe I should be checking masks instead of layers, if someone knows the best way? (bottom left of screenshot).

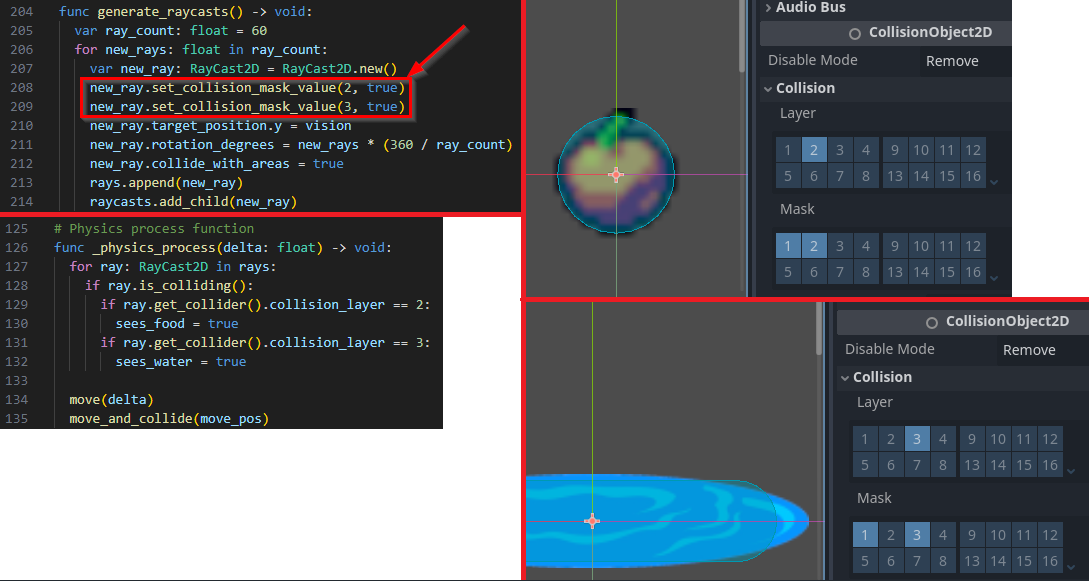

Code and Collision layers
Code and Collision layers1089×581 94.9 KB

Now for some reason, with the exact same setup and code checks, rays colliding with my Apples (layer and mask 2) work fine, and the sees_food variable gets set to true (as I expect). But when colliding with water (layer and mask 3) it doesn’t affect the sees_water variable.

Raycast2D Detections
Raycast2D Detections1619×532 78.6 KB

The code, layers and masks for both the raycasts and Area2Ds are all exactly the same… am I going crazy? Does anyone know why it isn’t detecting the Water in collision_layer 3?

2

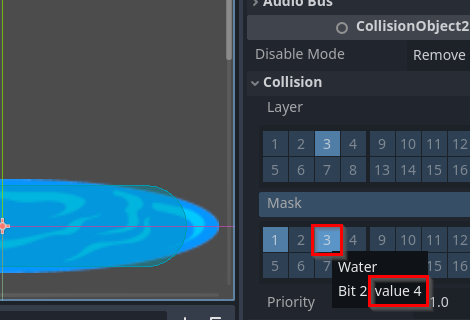

Don’t worry, figured it out, it’s checking the “value” of the layer, not the label number of the layer.

derp
derp470×320 28.3 KB

For anyone else using get_collider().collision_layer make sure you use the value of the layer / mask lol.
