Godot Version
v4.6.1
Question
I’m trying to procedurally generate a dungeon for a rougelike game im planning to make, but when i generate the dungeon it generates random colliders that i cant see when looking for collision shapes. Please forgive my bad code, I’m still rather new to gdscript.
My proc-gen script and its location:
extends Node2D
@export var _dimensions : Vector2i = Vector2i(7, 5)
@export var _start : Vector2i = Vector2i(-1, 0)
@export var _critical_path_length : int = 13
@export var _branches : int = 3
@export var _branch_length : Vector2i = Vector2i(1, 4)
var rooms = [
preload("res://OtherScenes/room_1.tscn")
]
var roomsize = Vector2(540, 360)
var _branch_candidates : Array[Vector2i]
var dungeon : Array
func _ready() -> void:
_initialize_dungeon()
_place_entrance()
_generate_path(_start, _critical_path_length, "C")
_generate_branches()
for x in range(_dimensions.x):
for y in range(_dimensions.y):
if cellhasroom(x, y):
spawnroomat(x, y)
_print_dungeon()
func _initialize_dungeon() -> void:
for x in _dimensions.x:
dungeon.append([])
for y in _dimensions.y:
dungeon[x].append(0)
func _place_entrance() -> void:
if _start.x < 0 or _start.x >= _dimensions.x:
_start.x = randi_range(0, _dimensions.x - 1)
if _start.y < 0 or _start.y >= _dimensions.y:
_start.y = randi_range(0, _dimensions.y - 1)
dungeon[_start.x][_start.y] = "S"
func _generate_path(from : Vector2i, length : int, marker : String) -> bool:
if length == 0:
return true
var current : Vector2i = from
var direction : Vector2i
match randi_range(0, 3):
0:
direction = Vector2i.UP
1:
direction = Vector2i.RIGHT
2:
direction = Vector2i.DOWN
3:
direction = Vector2i.LEFT
for i in 4:
if (current.x + direction.x >= 0 and current.x + direction.x < _dimensions.x and
current.y + direction.y >= 0 and current.y + direction.y < _dimensions.y and
not dungeon[current.x + direction.x][current.y + direction.y]):
current += direction
dungeon[current.x][current.y] = marker
if length > 1:
_branch_candidates.append(current)
if _generate_path(current, length - 1, marker):
return true
else:
_branch_candidates.erase(current)
dungeon[current.x][current.y] = 0
current -= direction
direction = Vector2i(direction.y, -direction.x)
return false
func _generate_branches() -> void:
var branches_created : int = 0
var candidate : Vector2i
while branches_created < _branches and _branch_candidates.size():
candidate = _branch_candidates[randi_range(0, _branch_candidates.size() - 1)]
if _generate_path(candidate, randi_range(_branch_length.x, _branch_length.y), str(branches_created + 1)):
branches_created += 1
else:
_branch_candidates.erase(candidate)
func spawnroomat(x : int, y : int):
var roomselected = rooms.pick_random()
var room = roomselected.instantiate()
add_child(room)
room.position = Vector2(x, y) * roomsize
var north = y + 1 < _dimensions.y and cellhasroom(x, y + 1)
var south = y - 1 >= 0 and cellhasroom(x, y - 1)
var east = x + 1 < _dimensions.x and cellhasroom(x + 1, y)
var west = x - 1 >= 0 and cellhasroom(x - 1, y)
room.setdoors(north, south, east, west)
print(room.global_position)
print(room.get_global_transform())
func cellhasroom(x, y):
return dungeon[x][y] is String
func _print_dungeon() -> void:
var dungeon_as_string : String = ""
for y in range(_dimensions.y - 1, -1, -1):
for x in _dimensions.x:
if dungeon[x][y]:
dungeon_as_string += "[" + str(dungeon[x][y]) + "]"
else:
dungeon_as_string += " "
dungeon_as_string += '\n'
print(dungeon_as_string)

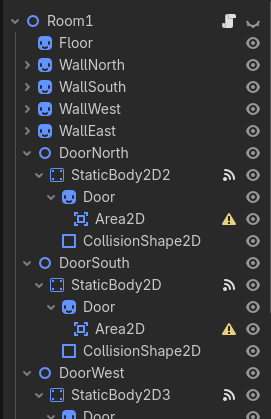

My room’s script and its location:
extends Node2D
var closedtexture := preload("res://SpriteTextures/doorclosed.png")
var opentexture := preload("res://SpriteTextures/dooropen.png")
@onready var doors := {
"north": $DoorNorth,
"south": $DoorSouth,
"west": $DoorWest,
"east": $DoorEast,
}
func setdoors(n : bool, s : bool, e : bool, w : bool):
setdoor("north", n)
setdoor("south", s)
setdoor("east", e)
setdoor("west", w)
func setdoor(dir : String, enabled : bool):
var node = doors[dir]
if node:
node.show()
func _on_static_body_2d_input_event(viewport: Node, event: InputEvent, shape_idx: int) -> void:
if event is InputEventMouseButton and event.button_index == MOUSE_BUTTON_LEFT:
if event.pressed:
var southdoor = doors["south"]
if southdoor:
var cs2d = southdoor.find_child("CollisionShape2D", true, false)
var sprite = southdoor.find_child("Door", true, false)
sprite.texture = opentexture
cs2d.disabled = true
func _on_static_body_2d_2_input_event(viewport: Node, event: InputEvent, shape_idx: int) -> void:
if event is InputEventMouseButton and event.button_index == MOUSE_BUTTON_LEFT:
if event.pressed:
var southdoor = doors["north"]
if southdoor:
var cs2d = southdoor.find_child("CollisionShape2D", true, false)
var sprite = southdoor.find_child("Door", true, false)
sprite.texture = opentexture
cs2d.disabled = true
func _on_static_body_2d_3_input_event(viewport: Node, event: InputEvent, shape_idx: int) -> void:
if event is InputEventMouseButton and event.button_index == MOUSE_BUTTON_LEFT:
if event.pressed:
var southdoor = doors["west"]
if southdoor:
var cs2d = southdoor.find_child("CollisionShape2D", true, false)
var sprite = southdoor.find_child("Door", true, false)
sprite.texture = opentexture
cs2d.disabled = true
func _on_static_body_2d_4_input_event(viewport: Node, event: InputEvent, shape_idx: int) -> void:
if event is InputEventMouseButton and event.button_index == MOUSE_BUTTON_LEFT:
if event.pressed:
var southdoor = doors["east"]
if southdoor:
var cs2d = southdoor.find_child("CollisionShape2D", true, false)
var sprite = southdoor.find_child("Door", true, false)
sprite.texture = opentexture
cs2d.disabled = true
